Home LED Panel Light Spot Light from China manufacturer - Zhejiang Chuanyang Lighting Technology Co.,LTD

Price:	100.0 USD
Payment Terms:	T/T,L/C
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: TH033-LED15×1W

Production Capacity: 3000 pieces/week

Delivery Date: 20 to 30 days

Hosing material: Aluminum

Dimensions: Φ168×100mm

Source: 1W High Power LED

CCT: 3000K / 6000K

LED Initial Flux: ≥1200lm / ≥1500lm

Means of Transport: Ocean

Packing: 180mm×180mm×120mm

Input Voltage: AC 100V~240V

LED Power Consumption: 15W

Hole Size: Φ145mm

Quantity: 15

CRI: Ra≥80

* Dimensions: Φ168×100mm
* LED Initial Flux: ≥1200lm / ≥1500lm

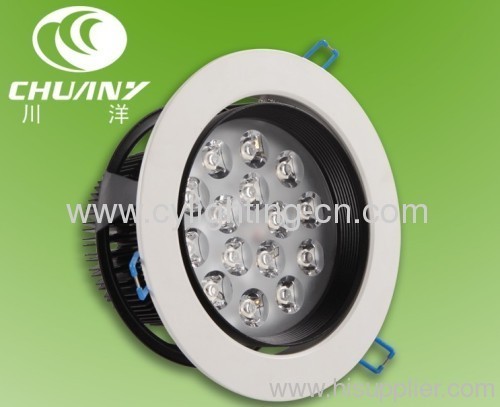

15W dia-casted aluminum round LED Down Lights/Ceiling Light

Picture of this LED down light/Ceiling Light

Chart of this LED downlight lamp /Ceiling Light



Specification of LED down lamps/Ceiling Light:

Item	Description
Product Model	TH033-LED15×1W
Input Voltage	AC 100V~240V
Frequency Range	50Hz~60Hz
Power Factor	≥0.9
Power Efficiency	≥85%
LED/LED Power Consumption	15W
Power Consumption	17W
Dimensions	Φ168×100mm
Hole Size	Φ145mm
Source	1W LED
Quantity	15
LED/LED Luminous Efficiency	≥80lm/W / ≥100lm/W
LED Initial Flux	≥1200lm / ≥1500lm
Lamp Efficiency	≥80%
View Angel	20°/40°/60°
CCT	3000K / 6000K
CRI	Ra≥80 / Ra≥70
Junction Temperature	≤75℃(Ta=25℃)
Lumen Attenuation	<5%@1,000Hrs
Life Span	≥30,000Hrs
Working Temp	-20℃~55℃ ≤60℃(Ta=25℃)
Working Humidity	10%~90%
IP Rank	IP44
Packing Size	180mm×180mm×120mm

*Moden appearance and durable.
*2 years warranty

Features:
1.long life span
2.Good quality and high brightness

Application:
Apply to home lighting,office,corridor ,bar and so on.
