Round White Silvery Brim Recessed LED Lights

Price:	100.0 USD
Payment Terms:	T/T,L/C
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: TD031-LED48×0.5W

Production Capacity: 3000 pieces/week

Delivery Date: 20 to 30 days

Hosing material: Aluminum Die-cast

Dimensions: Φ190×58mm

Source: 0.5W SMD 5630

CCT: 3000K / 6000K

LED Initial Flux: ≥1840lm / ≥2300lm

Means of Transport: Ocean

Packing: 200mmx200mmx80mm

Input Voltage: AC 100V~240V

LED Power Consumption: 23W

Hole Size: Φ170 mm

Quantity: 48

CRI: Ra≥80

* 5630 source
* Quantity: 48

Recessed 23W round white LED Down Lights

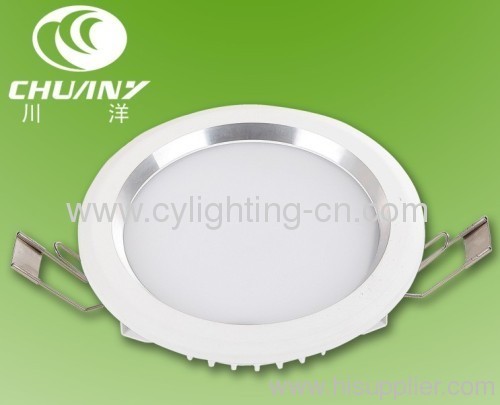

Image of this 23W LED down lamp:
23W Aluminum Die-cast Φ190×58mm LED Down Lights With Φ170 mm Hole

Specifications of this 23W led down light

Item	Description
Product Model	TD031-LED48×0.5W
Input Voltage	AC 100V~240V
Frequency Range	50Hz~60Hz
Power Factor	≥0.95
Power Efficiency	≥85%
LED/LED Power Consumption	23W
Power Consumption	26W
Dimensions	Φ190mm×58mm
Hole Size	Φ170mm
Source	0.5W SMD 5630
Material	Die-cast Aluminum, plastic-sprayed surface
Quantity	48
LED/LED Luminous Efficiency	≥80lm/W / ≥100lm/W
LED Initial Flux	≥1840lm / ≥2300lm
Lamp Efficiency	≥70%
View Angel	90°~120°
CCT	3000K / 6000K
CRI	Ra≥80 / Ra≥70
Junction Temperature	≤75℃(Ta=25 ℃)
Lumen Attenuation	<5%@1,000Hrs
Life Span	≥30,000Hrs
Working Temp	-20~55℃ ≤60 ℃(Ta=25 ℃)
Working Humidity	10%~90%
IP Rank	IP44
Net Weight	0.66KG
Packing Size	200mm×200mm×80mm

*Moden appearance and durable.
*2 years warranty

Features:
1.long life span
2.Good quality and high brightness

Application:
Apply to home lighting,office,corridor ,bar and so on.
