Milky White LED Lamp With Φ205 mm Hole For Indoor Using

Price:	100.0 USD
Payment Terms:	T/T,L/C
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: TD039-LED48×0.5W

Production Capacity: 3000 pieces/week

Delivery Date: 20 to 30 days

Hosing material: Aluminum Die-cast

Dimensions: Φ240×68mm

Source: 0.5W SMD 5630

CCT: 3000K / 6000K

LED Initial Flux: ≥1920lm / ≥2400lm

Means of Transport: Ocean,Air

Packing: 205mm×205mm×70mm

Input Voltage: AC 85V~265V

LED Power Consumption: 24W

Hole Size: Φ205 mm

Quantity: 48

CRI: Ra≥80

* Hole Size: Φ205 mm
* Quantity: 48

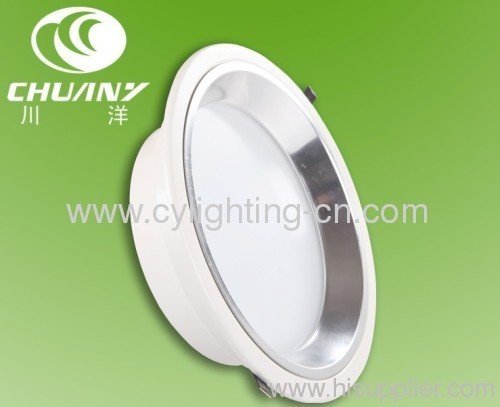

24W Home Application Aluminum Die-cast Φ240×68mm LED Downlight

Specification of LED Downlight

Item	Description
Product Model	TD039-LED48×0.5W
Input Voltage	AC 85V~265V
Frequency Range	50Hz~60Hz
Power Factor	≥0.9
Power Efficiency	≥90%
LED Power Consumption	24W
Power Consumption	26.7W
Dimensions	Φ240×68mm
Hole Size	Φ205 mm
Material	Aluminum Die-cast
Source	0.5W SMD 5630
Quantity	48
LED Luminous Efficiency	≥80lm/W / ≥100lm/W
LED Initial Flux	≥1920lm / ≥2400lm
Lamp Efficiency	≥70%
View Angel	90°~120°
CCT	3000K / 6000K
CRI	Ra≥80 / Ra≥70
Junction Temperature	≤75℃(Ta=25℃)
Lumen Attenuation	<5%@1,000Hrs
Life Span	≥30,000Hrs
Working Temp	-20℃~55℃
Working Humidity	10%~90%
IP Rank	IP44
Net Weight	450g
Packing Size	245mm×245 mm×80mm

Our Services:
1.Any your customized lighting we can help you to design and put into product, because we have professional R&D team
2.Your inquiry related to our products will be replied in 24 hours
3.Well-trained and experienced staffs to answer your questions
4.Competitive prices and good quality for our friendship.
5.OEM,ODM services are provided
6. 3 years warranty
